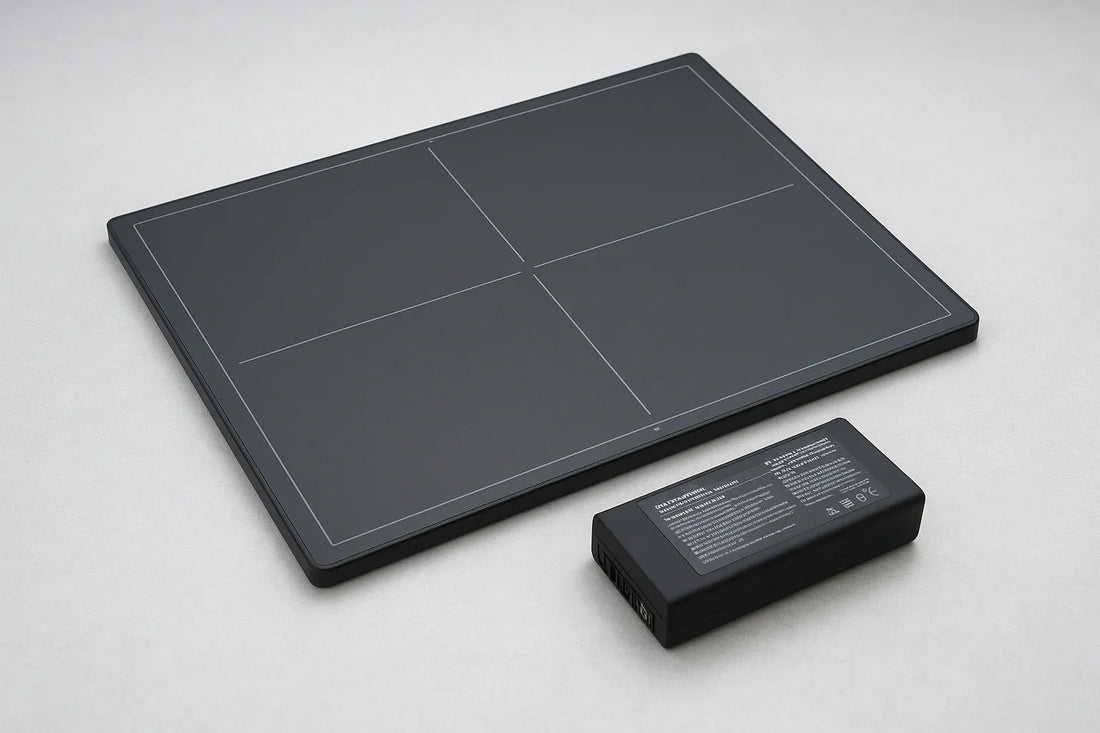

How to Choose the Right Flat Panel Detector Battery

Flat panel detectors (FPDs) rely on stable power to produce accurate imaging. A reliable battery keeps the detector running smoothly during long clinical shifts, especially in mobile radiography where workflow interruptions cause delays and repeat scans. Today, more than 60% of bedside X-ray exams in many hospitals rely on portable systems, increasing the need for consistent battery performance.

A poor-quality or incompatible battery can lead to voltage instability, image artifacts, or sudden shutdowns. These issues reduce diagnostic accuracy and may force radiographers to repeat exposures, which increases patient radiation. Because most departments use detectors continuously throughout the day, choosing the right battery becomes essential for efficiency and safety.

FPD batteries vary in chemistry, capacity, discharge behavior, and protection features. These differences influence performance under heavy workloads and determine how long the detector can function on a single charge. Most hospitals replace their detector batteries every 18–36 months, depending on usage patterns. A well-chosen battery minimizes downtime and ensures dependable imaging throughout its service life.

This article explains how to choose an FPD battery using clear, evidence-based guidance. The following sections break down technical specifications, safety features, and long-term reliability points that matter most in real clinical environments.

Understanding Flat Panel Detector Power Requirements

Flat panel detectors operate within a narrow power range. Their imaging electronics process signals in real time, so even minor voltage changes can affect image quality. This is why most medical detectors use lithium-ion or lithium-polymer batteries. These chemistries offer stable discharge curves and predictable performance.

Typical FPDs draw between 6 and 18 watts during routine use. Power demands rise during wireless transmission and calibration. Because of this, the battery must handle peak loads without dropping below the safe operating voltage. Many detectors work within a range of 10.8V–14.8V, depending on the manufacturer. Choosing a battery outside that specification increases the risk of shutdowns or long-term circuit damage.

Capacity determines runtime. Many detectors rely on 2000–6000 mAh batteries, which usually provide 3 to 8 hours of use. Busy radiology units often rotate multiple batteries per device to maintain continuous workflow. Understanding your daily exam volume helps determine the minimum capacity you should choose.

Charging systems also vary between brands. Some detectors charge internally when docked, while others rely on multi-slot external chargers. The battery must support the specific charging profile of the detector. Using a charger not designed for the battery can shorten its lifespan or trigger safety protections.

Wireless detectors rely even more on stable power. Image transfer requires additional energy, especially during heavy exam turnover. A battery that cannot sustain high-load events will slow transmission or create delays. Selecting a battery with strong voltage stability ensures smooth performance throughout the day.

Key Factors When Selecting a FPD Battery

Choosing the right battery requires more than matching the model name. A well-selected battery improves consistency, reduces downtime, and extends the detector’s life. Below are the most important factors to consider before purchasing.

Battery Chemistry and Cell Quality

Most FPD batteries use Li-ion or Li-polymer cells. Li-ion offers high energy density and long cycle life, while Li-polymer provides better stability and a reduced swelling risk. High-quality medical batteries often support 300–500 full charge cycles before capacity drops below 80%. Low-grade cells may degrade far faster, increasing replacement costs.

Look for batteries built with premium cells from reputable manufacturers. Certifications such as ISO, CE, and UL signal that the battery passed essential safety tests.

Voltage and Compatibility

Voltage must match the detector's specification exactly. Common ratings include 10.8V, 11.1V, 14.4V, and 14.8V. Even a small mismatch can cause unstable imaging or power failures. You should verify the voltage, connector type, supported charging conditions, and manufacturer-recommended model number.

Using an incompatible battery can void equipment warranties and lower the detector’s lifespan.

Capacity and Runtime

Battery capacity affects how long the detector can operate on a single charge. For light use, capacities around 3000 mAh may be sufficient. High-volume departments should consider 5000 mAh or more, especially when using mobile X-ray units.

Facilities with constant patient turnover often keep two batteries per detector to avoid delays.

Discharge Rate and Peak Load Support

Detectors need stable power during sudden high-demand events, such as image transmission or calibration cycles. A battery with poor discharge behavior may experience voltage drops that affect image quality.

Choose batteries with:

• A stable discharge curve
• Low internal resistance
• Strong performance under peak loads

These features ensure smooth operation during demanding clinical tasks.

Safety Features

Medical-grade batteries include built-in protections that prevent overheating or electrical faults. Look for:

• Over-charge protection
• Over-discharge protection
• Over-current protection
• Short-circuit protection
• Temperature control

These features safeguard both the battery and the detector.

Brand Reputation and Warranty

Choose reputable manufacturers with transparent quality control. A warranty of 6–12 months is common for medical-use batteries. Avoid unbranded products, as they may lack proper documentation, testing, or traceability.

Safety, Maintenance, and Lifespan Considerations

Proper handling and routine maintenance significantly extend a battery’s lifespan. These practices also improve detector reliability and keep operating costs under control.

Safe Charging Habits

Always use the charger recommended by the detector manufacturer. Chargers are calibrated to the battery’s chemistry and charging profile. Using the wrong charger increases heat, accelerates aging, and risks damaging internal components.

Most FPD batteries charge fully within 2–3 hours. Avoid leaving them plugged in long after reaching 100%, as this stresses the cells.

Optimal Storage Conditions

Flat panel detector batteries perform best when stored between 15°C and 25°C. Heat accelerates chemical wear, while cold temperatures temporarily reduce capacity.

For longer storage periods, keep the battery at 40–60% charge to prevent deep discharge or over-stress.

Regular Inspections and Replacement Cycles

Most facilities replace their FPD batteries every 18–36 months. Signs that a battery needs replacement include:

• Rapid decrease in runtime
• Noticeable swelling
• Excessive heat
• Frequent shutdowns

Routine capacity checks help identify early degradation.

Avoiding Physical Damage

Drops or impacts can damage the internal structure of lithium cells. Even small dents may lead to voltage instability. Detectors moved between departments should be transported in padded carts or protective cases.

Moisture exposure also causes corrosion. Any battery that comes into contact with liquids should be removed immediately.

Extending Overall Lifespan

You can maximize battery performance by:

• Avoiding deep discharge
• Keeping temperatures stable
• Rotating multiple batteries
• Preventing extended full-charge storage
• Following calibration procedures when recommended

These habits maintain consistent imaging performance and extend the value of each battery.

Final Recommendations and Purchase Checklist

Choosing the right FPD battery is a critical step in maintaining imaging reliability. A suitable battery improves diagnostic accuracy, supports fast clinical workflows, and reduces long-term costs.

Final Recommendations

Select a battery with high-quality Li-ion or Li-polymer cells. Confirm voltage, connector type, capacity, and charger compatibility before purchasing. For busy clinical environments, opt for higher capacities and maintain at least two batteries per detector.

Look for documented safety certifications and a warranty period of at least six months. Reliable brands provide better performance and reduce the risk of early failure.

Quick Purchase Checklist

Before buying, verify the following:

• Correct voltage and model compatibility
• Suitable capacity for daily use
• Certified safety standards (ISO, CE, UL)
• Strong peak-load handling
• Reliable cell quality
• Compatible charging profile
• Built-in protection circuits
• Warranty coverage
• Trusted supplier or manufacturer

A careful selection ensures stable imaging and supports a smooth clinical workflow.
